5ft/70W Linkable LED Linear Trunking System 130Lm/W super high Efficiency 5 years warranty
(I) Product Details:
* Top brand driver, multiple function and high stability, High quality Meanwell/Tridonic power supply, AC100V~240V, 50/60Hz input voltage, constant voltage or constant current output, quick responds, no flicker, lightning protection, PFC function available, 0-10V, DALI intelligent dimming available;
* ingenious design of housing inside and components layout. Constructed in a heavy-duty 6063 aluminum and PMMA, durable and excellent heat dissipation efficiency; Constant current driver is isolated away from the heat source of the LEDs, keeps the stability and performance of the driver for long life;
* Luminaire coated in an environmentally friendly polyester powder formulated for a durable and long-lasting color in a silvery, black and white finish. No toxic heavy metals, VOC, or mercury were used in the design;
* Adopting SMD3030 LEDs light source, high output lighting efficiency 130LPW, high Color Rendering Index(CRI>83Ra), excellent heat dissipation, low light decay;
* Suspended/Surface mounted/Linkedable with trunk rail system for different occassions；
* PIR sensor, Emergency, 1-10V, DALI, Track Light is available via 5/7/11 cores with 2.5mm2 cooper cable cross section;
* 30°/60°/90°/Double 25°,asymmetric L or R light distribution 2nd optics design for option;
* CE, RoHS listed, SAA, TUV pending;
* 5 years guarantee;
(II) Applications:
* Train, Bus station and Office;
* Workshops and warehouse;
* Supermarkets;
* Exhibition center;
* Airport Hall;
* Underground garage;
(III) Quick View:
1. 70W/5ft, 8,500-9,100lm, IP40;
2. Inputing rating: AC100-240V 50/60HZ;
3. Beam Angle: 30°/60°/90°/Double 25°,asymmetric L or R;
4. Size: 1440(L)*73(W)*75(H)mm;
5. CE, RoHS listed,SAA,TUV pending;
6. 5 years guarantee;
(IV) Technology Parameters:Item No. | KD-LLF070-CE4 | Housing color | Silver/Black |
Input Voltage | AC100-240V 50/60HZ | CRI | >83Ra |
Power | 70W | IP Ranking | IP40 |
Working Temp | -20 to +45℃ | Power Factor (PF) | ＞0.95 |
Luminous Flux | 8500-9100lm | Material | Al+PMMA |
LED QTY | 184PCS | Light Source | SMD3030 |
Beam Angle | 30°/60°/90°/Double 25°,asymmetric L or R | LED Efficiency | 100/130LPW for option |
CCT | 2700-6500K | Certificate | CE, RoHS listed, TUV,SAA pending |
Dimension | 1440(L)*73(W)*75(H)mm | Warranty | 5 years |
Weight | 650g | Driving | /MEANWELL |
(V) Delivery and Payment Details:
Delivery |
Delivery Time | 5-7 working days for sample orders,10-15working days for mass orders |
Payment | T/T,L/C,Western Union,PAYPAL |
Payment Terms | 30% T/T in advance,balance before shipment |
MOQ | 30m |
(VI) Optical & Photometric Data:
(VII) Installation:
(VIII) Package:
| About Package |
| Package Carton | Neutral Package/OEM Package |
| Components Included | Name | Qty”/PCS |
| LED Linear Trunking Rail System | 1 |
| Specification | 1 |
| Warrantee Card | 1 |
Tag words LED linear trunking rail system , Linear LED high bay light , Linear LED low bay , LED triproof light , SMD LED Flood light ,Modular sport LED flood light , DOB LED Flood light , Driverless LED flood light , UFO LED high bay , LED troffer , LED area light , LED street light
Contact Us:
Tel: +86(0)755-2762 9722
Fax: +86(0)755-2762 9722
Email:info@kd-opto.com
Web: www.kd-opto.com
Add: 10F,Sogood Science Park, Hangkong Rd, Xixiang, Bao’an District, Shenzhen,518102, P.R. China
PC: 518 102
Product Tags:
|
|

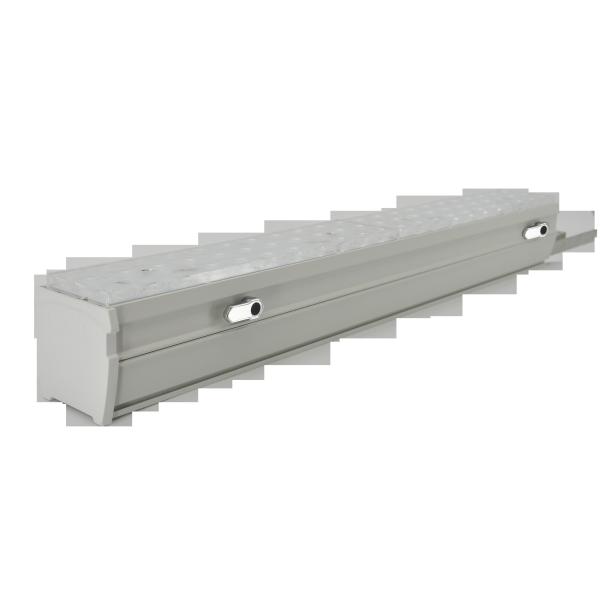

Linkable Linear LED Lighting Trunking System 70 Watt Aluminum Material Images
|
